Tsurumi GSZ & GSD series use powerful 4 & 6 pole motors to large volumes with high heads. Hi chrome wearing parts, coupled with the slow speed motor, will ensure extremely long wear life. A water jacket for forced cooling of the motor permits the pumps to operate at low water levels for extended periods of time.
4 pole – 18,000 LPM
- Discharge port 150 – 250mm
- Side discharge
- Semi open type impeller
- Three phase, 4 pole motors from 37 – 75kW
Applications – 4 Pole:
- General dewatering
- Drainage on construction sites
- Draining wells
- Draining basements or pits
- Stormwater dewatering
6 pole – 10,500 LPM
- Discharge port 150 – 250mm
- Side discharge
- Semi open type impeller
- Three phase, 6 pole motors, 22 – 37kW
- Hi chrome wearing parts for longevity
- Water jacket cools motor even at low water levels
Applications – 6 pole:
- Draining sand laden water
- Draining slurry in cement plants, quarries or mines
- Pumping sediments in wastewater treatment plant
- Pumping scale at steel works

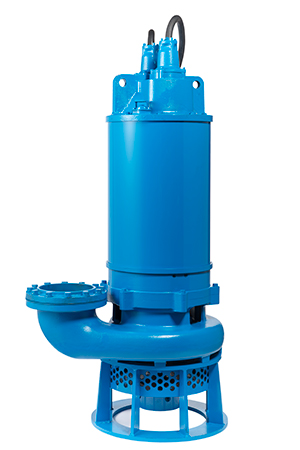

Slurry – GSD 4 Pole – 10,600LPM
- Discharge port 200 & 250mm
- Side discharge
- Semi open type impeller
- Three phase, 4 pole motors from 37 – 75kW
- Shaft mounted agitator – Hi chrome
- Water jacket cools motor even at low water levels
