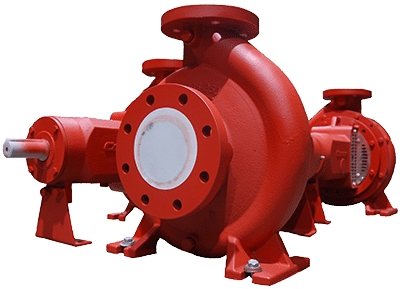

Design: End suction, single stage, horizontal, centrifugal pump; with volute casing and back pull out design.
Back pull out design when coupled using correctly sized spacer coupling or flexible driveshaft facilitates quick and effective pump maintenance without disturbing suction or discharge pipework. Pump is designed with many interchangeable parts across models to maximise design effectiveness, full range of models utilises only four types of shaft and five bearings housings.
Thin, clean, non-aggressive and non-explosive liquids.
Liquids should be free from large solid particles and fibres.
Gland Packing; lantern Ring is used for water sealing and lubrication of packing.
Mechanical Seal: Standard: Alloy-Alloy/Viton with alternative seal construction available on request.
DIN2332 PN10RF, Optional ANSI B16.5 Class 300lb.
